Electronics Engineer Helper

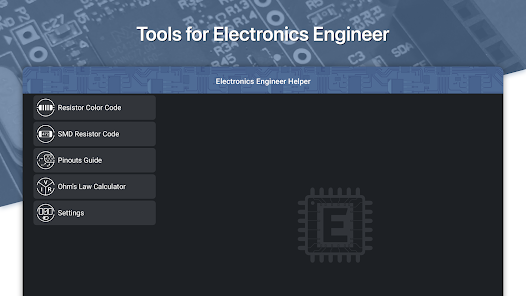

Electronics Engineer Helper is a compact utility designed to simplify common electronics tasks for students, hobbyists and professionals. The app bundles calculators and reference tools including resistor color and digit marking converters supporting 4, 5 and 6 band codes, two-symbol and three- and four-digit formats plus EIA-96 SMD codes, a set of pinout diagrams for popular interfaces and development boards, and a straightforward Ohm's law calculator. Electronics Engineer Helper saves time when identifying components, planning circuits or checking values on the bench and serves as a practical pocket reference for anyone working with electronic hardware.

Key Features

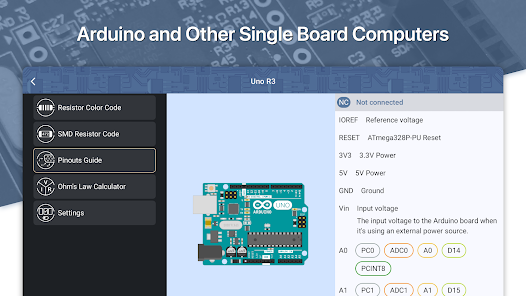

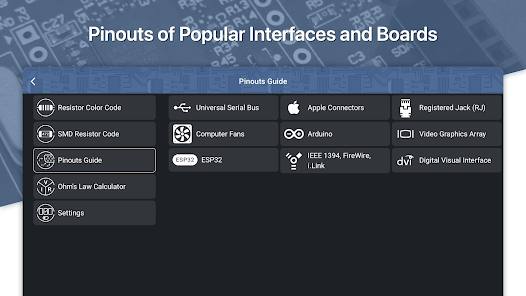

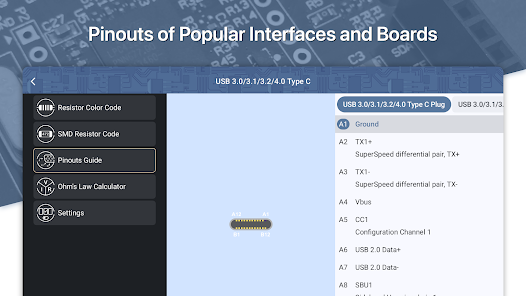

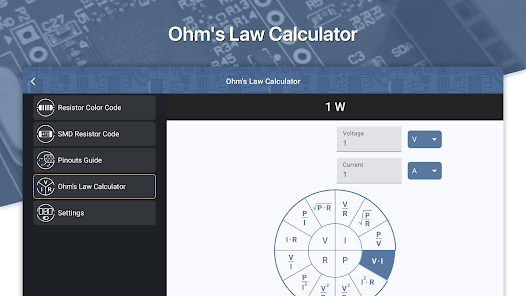

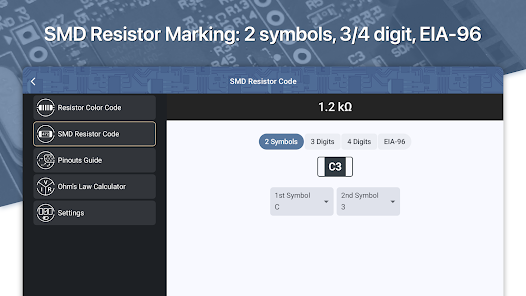

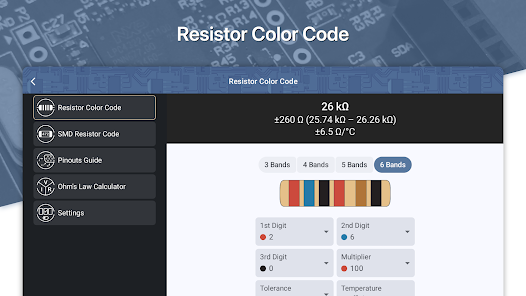

Resistor color and digit marking tools covering 4, 5 and 6 band codes, two-symbol and three- and four-digit formats, with EIA-96 SMD code support. Pinouts guide with diagrams for common connectors and boards such as USB, Apple, Arduino, ESP32, FireWire, DVI and VGA. A simple Ohm's law calculator for quick voltage, current and resistance checks. A single package that consolidates calculators and reference material useful at the bench or in the workshop, allowing quick switching between component lookup and calculation.

Advantages

Electronics Engineer Helper reduces time spent searching multiple references by providing component markings and pinouts in one place. It supports both through-hole resistor color codes and common SMD identification formats, including EIA-96. It is useful for learners, makers and technicians who need reliable quick references while building or troubleshooting circuits and complements detailed datasheets and design tools.

Disadvantages

Not a substitute for full datasheets or in-depth design software; the app provides quick references and basic calculations only. Pinout and calculator coverage is limited to the listed interfaces and functions and may not include every legacy or niche connector. Electronics Engineer Helper is intended as a practical reference rather than a complete design suite.
